Description

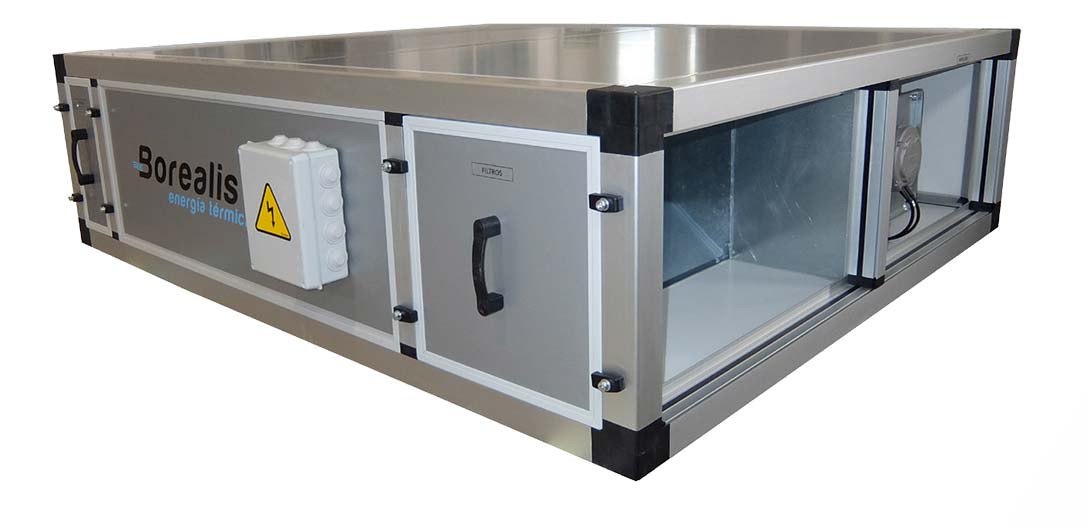

The RH heat recovery units are compact recovery units that include a high-efficiency heat exchanger (up to 85%) and EC fans, meeting the requirements of the European Ecodesign Directive.
These units are used in comfort installations to renew indoor air and recover energy previously used to condition the building’s interior. The RH range includes several models, ranging from 900 m3/h to 6,000 m3/h.
EQUIPMENT FEATURES
- Structure made with anodised aluminium profiles with thermal bridge break and removable sandwich-type closure panels composed of two lacquered galvanised steel sheets with PIR thermo-acoustic insulation core, 45 mm thick as standard. Interior of the panels lacquered. Stainless steel condensate tray.
- Internal circuit: EC plug-fan free-wheel fans as standard.
- High-efficiency counterflow static exchanger, selected according to ErP 2018 standards.
- G4+F7 filtration as standard. Optionally, higher-efficiency filters can be installed.
- Electrical panel with input switch, fan protections, terminal block, and housing for electronic control.
- Electronic regulation via microprocessor. Remote control with backlit LCD display, operating mode icons, fan control, free cooling, and temperature sensors with screen display.
- MODBUS connection as standard.
- Optional pressure control and CO2 control.
